LED Work Lights – Model 770 XD

5" x 3" Oval LED Work Lights

The 770 XD improves on the high-quality electronics and engineered optics of the Model 700, and puts them into a much slimmer package. As with the rest of the XD Series, it features a polycarbonate housing and lens for maximum protection.

  • A variety of beam patterns available
  • UV-resistant polycarbonate lens
  • Universal mount
  • Vertical oval version available (Model 771 XD)
Applications
  • Agriculture
  • Construction
  • Industrial
  • Material Handling
  • Mining
  • Off-Road 4x4
  • Railroad
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator
LED Work Light Model 770 XD 3/4 View

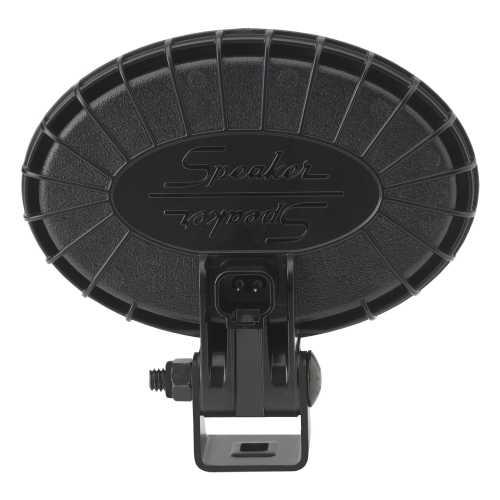

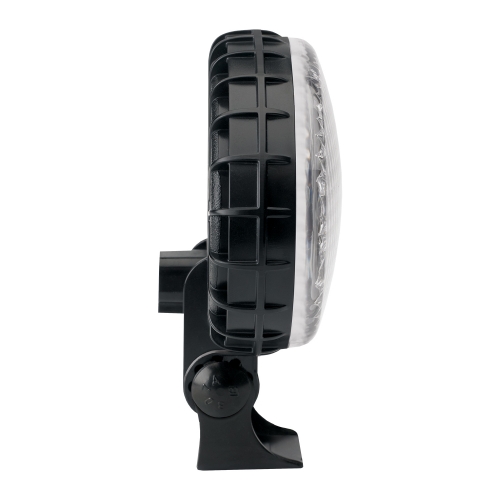

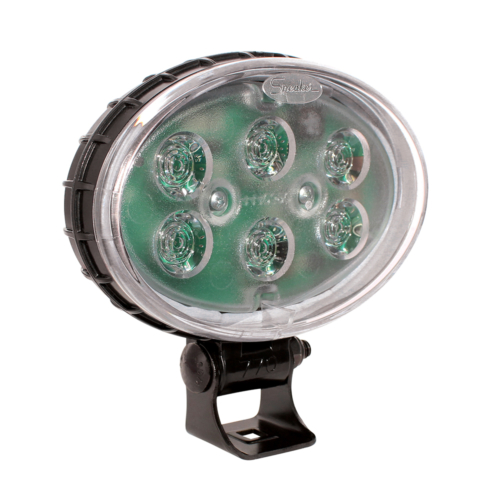

LED Work Light Model 770 XD 3/4 View LED Work Light Model 770 XD Spot 3/4 View LED Work Light Model 770 XD Side View LED Work Light Model 770 XD Back View
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
1706041 Part 1706041 12V LED Work Light with Flood Beam Pattern & DT04-2P ConnectorDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP67, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only)
1706051 Part 1706051 12V LED Work Light with Trapezoid Beam Pattern & DT04-2P ConnectorDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP67, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only)
1706241 Part 1706241 12-48V LED Work Light with Flood Beam Pattern & DT04-2P ConnectorDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP67, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only), UL Recognized
1706261 Part 1706261 12-48V LED Work Light with Spot Beam Pattern & DT04-2P ConnectorDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP67, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only), UL Recognized
1706251 Part 1706251 12-48V LED Work Light with Trapezoid Beam Pattern & DT04-2P ConnectorDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP67, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only), UL Recognized
1706461 Part 1706461 12-48V LED Work Light with Flood Beam Pattern & PE12015792 ConnectorDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP67, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only), UL Recognized

Dimensions

LED Work Light Model 770 XD Dimensions

Part Accessories

Part NumberDescriptionPrice (U.S. only)Spec Sheet
8200011 Part 8200011 Magnet Mount Kit for XD Series Work LightsDownloadPDF
8200101 Part 8200101 Stainless Steel Mounting Kit for Work Lights & Marine LightsDownloadPDF
8200491 Part 8200491 Mounting Kit For Work LightsDownloadPDF
