LED Signal Lights – Model 217

2.85" Round LED Signal Lights

Available as a backup light, DRL & front position light, rear fog light, stop and tail light, or turn signal light, this compact, rust- and corrosion-resistant, and efficient LED is designed to stand up to use and abuse associated with a mining or construction jobsite, making it perfect for use just about anywhere.

  • Polycarbonate base and lens are resistant to rust and corrosion
  • Simple installation with universal mount
  • 90mm adapter ring available
  • Corrosion-resistant polycarbonate base and lens
  • Fog light available in red or white
Applications
  • Agriculture
  • Automotive
  • Construction
  • Industrial
  • Material Handling
  • Mining
  • Off-Road 4x4
  • Powersports
  • Railroad
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.
Share this Product
Specifications Dealer Locator
LED Signal Light Model 217

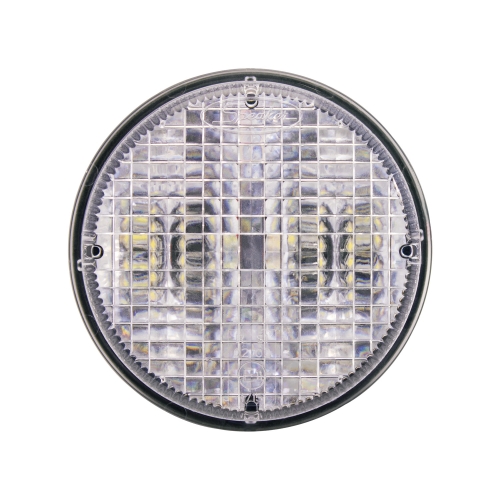

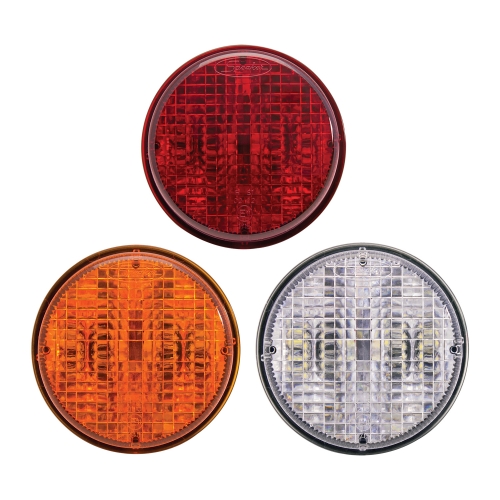

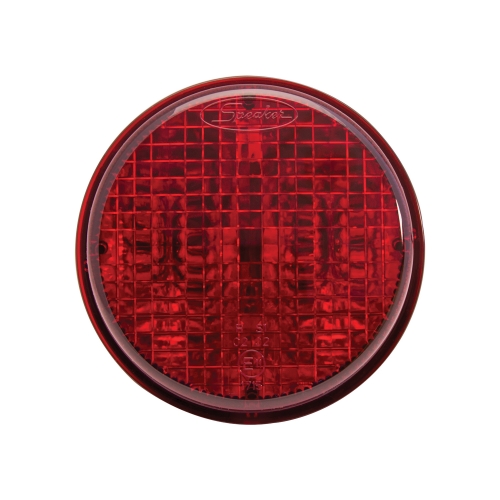

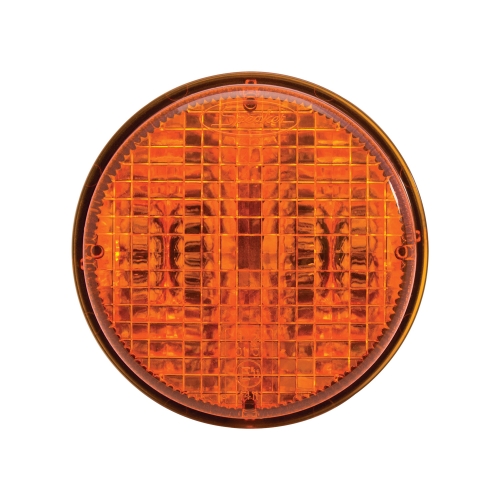

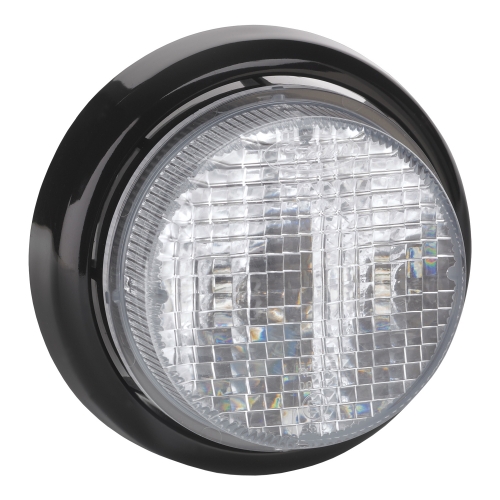

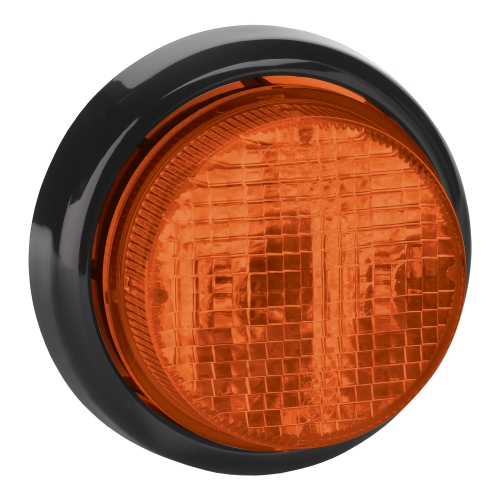

LED Signal Light Model 217 LED Signal Light Model 217 Red Lamp LED Signal Light Model 217 Amber Lamp LED Signal Light Model 217 Clear Lamp LED Signal Light Model 217 Amber with Mount LED Signal Light Model 217 Clear with Mount
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Numbers without 90mm Adapter Ring

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0345421 Part 0345421 12-24V SAE/ECE LED Backup Light without 90mm Mounting Assembly AdapterDownloadPDF
  Complies with: Buy America Standards, ECE Reg 23, FMVSS 108 s7.6 (Table XII), IEC IP67
0345461 Part 0345461 12-24V SAE/ECE LED DRL & Front Position Light without 90mm Mounting Assembly AdapterDownloadPDF
  Complies with: Buy America Standards, ECE Reg 7, ECE Reg 87, IEC IP67
0345411 Part 0345411 12-24V ECE LED Stop & Tail Light without 90mm Mounting Assembly AdapterDownloadPDF
  Complies with: Buy America Standards, ECE Reg 7, IEC IP67
0345441 Part 0345441 12-24V SAE/ECE LED Turn Signal without 90mm Mounting Assembly AdapterDownloadPDF
  Complies with: Buy America Standards, ECE Reg 6, FMVSS 108 s7.1 (Table VI), FMVSS 108 s7.1 (Table VII), IEC IP67

Part Numbers with 90mm Adapter Ring

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0345451 Part 0345451 12-24V SAE/ECE LED DRL & Front Position Light with 90mm Mounting Assembly AdapterDownloadPDF
  Complies with: Buy America Standards, ECE Reg 7, ECE Reg 87, IEC IP67
0345521 Part 0345521 12-24V SAE/ECE LED Turn Signal with 90mm Mounting Assembly AdapterDownloadPDF
  Complies with: Buy America Standards, ECE Reg 6, FMVSS 108 s7.1 (Table VI), FMVSS 108 s7.1 (Table VII), IEC IP67

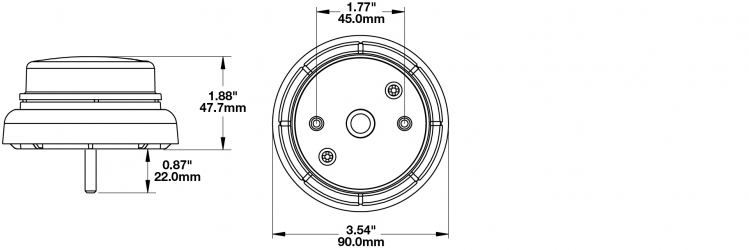

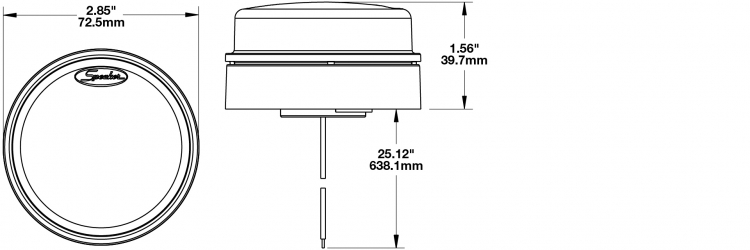

Dimensions
