LED Headlight – Model 8631 Evolution

5.75" Round Headlights with Turn Signal

Overview
The new Model 8631 Evolution LED headlight brings you all of the same great features found in our Model 8630 Evolution headlight, with the addition of a turn signal. Ideal for Classic car headlights, motorcycle headlight replacement, or anything that fits 5.75″ (PAR46) specifications.

Features

  • DOT- and ECE-compliant functions make this product 100% street legal.
  • Easy plug and play installation uses Delphi wire connector
  • Turn signal, daytime running light (DRL) & front position (FP) functions utilize an outer ring at high intensities.
  • Produces identical light output to our Model 8630 Evolution LED headlight.

Summary
Amber in color, the new turn signal is designed in the outer ring of the LED light to display a flashing circle when in use. This unique-looking headlight features high and low beam, as well as a daytime running light (DRL) & front position (FP) functions. The Model 8631 Evolution LED headlight offers a powerful LED upgrade option for 5.75″ (PAR46) sealed beam headlights.

Applications
  • Construction
  • Mining
  • Off-Road 4x4
  • Railroad
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator

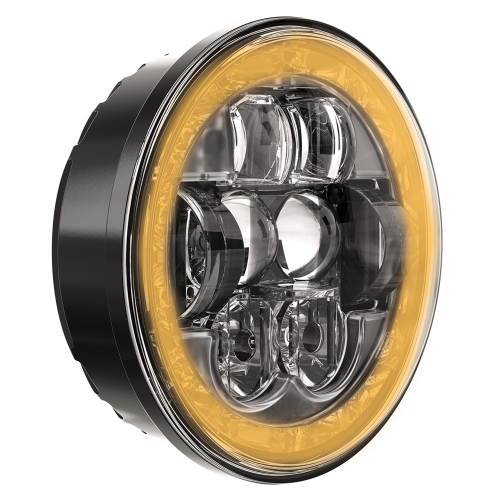

LED Headlight Model 8631 Evolution 3/4 View Front Turn Signal Optics

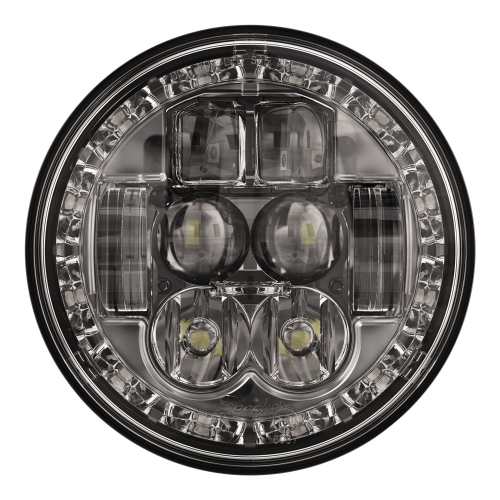

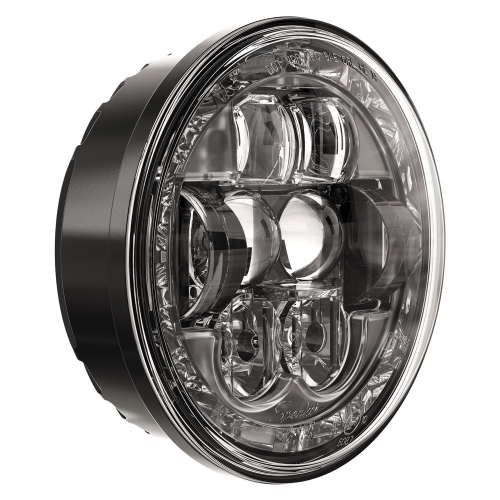

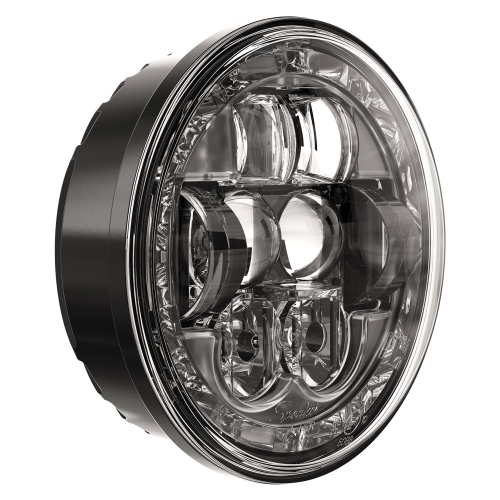

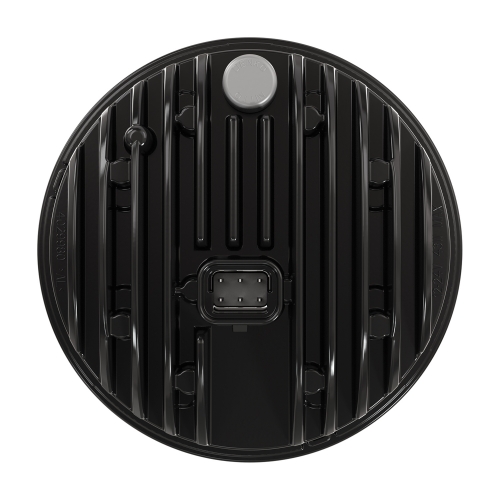

LED Headlight Model 8631 Evolution 3/4 View Front Turn Signal Optics LED Headlight Model 8631 Evolution Right Hand Traffic 3/4 View LED Headlight Model 8631 Evolution Left Hand Traffic 3/4 View LED Headlight Model 8631 Evolution Right Hand Traffic Front View LED Headlight Model 8631 Evolution Left Hand Traffic Front View LED Headlight Model 8631 Evolution Side View LED Headlight Model 8631 Evolution Back View LED Headlight Model 8631 Evolution Optics
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0551631 Part 0551631 12-24V DOT/ECE LED RHT High & Low Beam Headlight with Turn Signal, FP & DRLDownloadPDF
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 6, ECE Reg 7, ECE Reg 87, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.1 (Table VI), FMVSS 108 s7.4 (Table X), IEC IP67, SAE J1395, SAE J2087, SAE J222
0551641 Part 0551641 12-24V ECE LED LHT High & Low Beam Headlight with Turn Signal, FP & DRLDownloadPDF
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 6, ECE Reg 7, ECE Reg 87, IEC IP67

Dimensions

LED Headlight Model 8630 Evolution Dimensions

Part Accessories

Part NumberDescriptionPrice (U.S. only)Spec Sheet
3157751 Part 3157751 Double Ring Kit Mounting Assembly for LED Headlight Model 8630DownloadPDF
8200001 Part 8200001 Single Ring Kit Mounting Assembly for LED Headlight Model 8630DownloadPDF
8200071 Part 8200071 Mounting Ring Kit for 5.75" Round (PAR46) Headlights - PIERCEDownloadPDF
