Bi-LED Headlight – Model 97

100mm Bi-LED Headlights

Overview
The Model 97 Bi-LED headlights are designed as upgrades from stock bulb-based 100mm lights commonly found on a variety of applications including buses, trucks, and motor coaches.

Features

  • Built-in high and low beam headlight with front position
  • Easy installation; versatile to fit in a variety of heavy-duty applications
  • Durable and Reliable; Heavy-duty aluminum housing and UV-resistant polycarbonate lens
  • Legal on-road throughout North America and Europe; DOT & ECE compliant

Summary
Each Model 97 features a heavy-duty aluminum housing, UV-resistant lens, and the latest in solid-state optics. They are designed to be drop-in High & Low beam LED headlight replacements for stock 100mm lights.

Applications
  • Agriculture
  • Construction
  • Industrial
  • Material Handling
  • Motorcycle
  • Off-Road 4x4
  • Powersports
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirements
Share this Product
Specifications Dealer Locator
LED Headlight Model 97 REG 113 RHT Front View 2018
LED Headlight Model 97 REG 113 RHT Front View 2018 LED Headlight Model 97 REG 113 RHT 3/4 View 2018 LED Headlight Model 97 REG 113 RHT Side View 2018 LED Headlight Model 97 REG 113 back view 2018
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0554911 Part 0554911 12-24V ECE LHT High & Low Beam Headlight (Reg 112)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 112, ECE Reg 7, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)
0554921 Part 0554921 12-24V DOT/ECE High & Low Beam Headlight (Reg 113)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 113, ECE Reg 50, FMVSS 108 s10.1 (Table XX), IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)

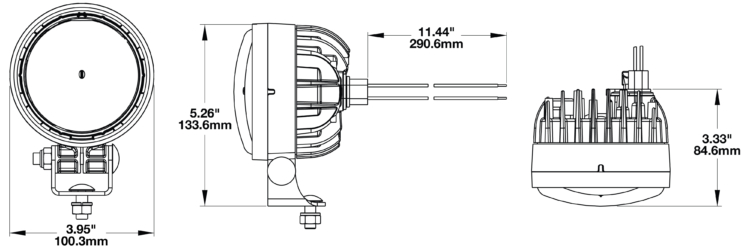

Dimensions

LED Headlight Model 97 Dimensions 2018

Part Accessories

Part NumberDescriptionPrice (U.S. only)Spec Sheet
8001511 Part 8001511 3-Point Mount for 3mm Mounting FrameDownloadPDF
8001521 Part 8001521 Single Pedestal Mount KitDownloadPDF
